[xv6 學習紀錄 03-1] Virtual Memory 程式碼解析

typedef uint64 pte_t;
typedef uint64 *pagetable_t; // 512 PTEs

// kernel/vm.c
pte_t *
walk(pagetable_t pagetable, uint64 va, int alloc)
{
  if(va >= MAXVA)
    panic("walk");

  for(int level = 2; level > 0; level--) {
    pte_t *pte = &pagetable[PX(level, va)];         // 這一行！
    if(*pte & PTE_V) {
      pagetable = (pagetable_t)PTE2PA(*pte);
    } else {
      if(!alloc || (pagetable = (pde_t*)kalloc()) == 0)
        return 0;
      memset(pagetable, 0, PGSIZE);
      *pte = PA2PTE(pagetable) | PTE_V;
    }
  }
  return &pagetable[PX(0, va)];
}

#define PTE2PA(pte) (((pte) >> 10) << 12)

// shift a physical address to the right place for a PTE.
#define PA2PTE(pa) ((((uint64)pa) >> 12) << 10)

// kernel/riscv.h
#define PGSIZE 4096 // bytes per page
#define PGROUNDUP(sz)  (((sz)+PGSIZE-1) & ~(PGSIZE-1))
#define PGROUNDDOWN(a) (((a)) & ~(PGSIZE-1))

a = 10;

// Return the address of the PTE in page table pagetable
// that corresponds to virtual address va.  If alloc!=0,
// create any required page-table pages.
// 根據 virtual address va 以及 pate table patetable
// 回傳 PTE 的 address (physical memory)

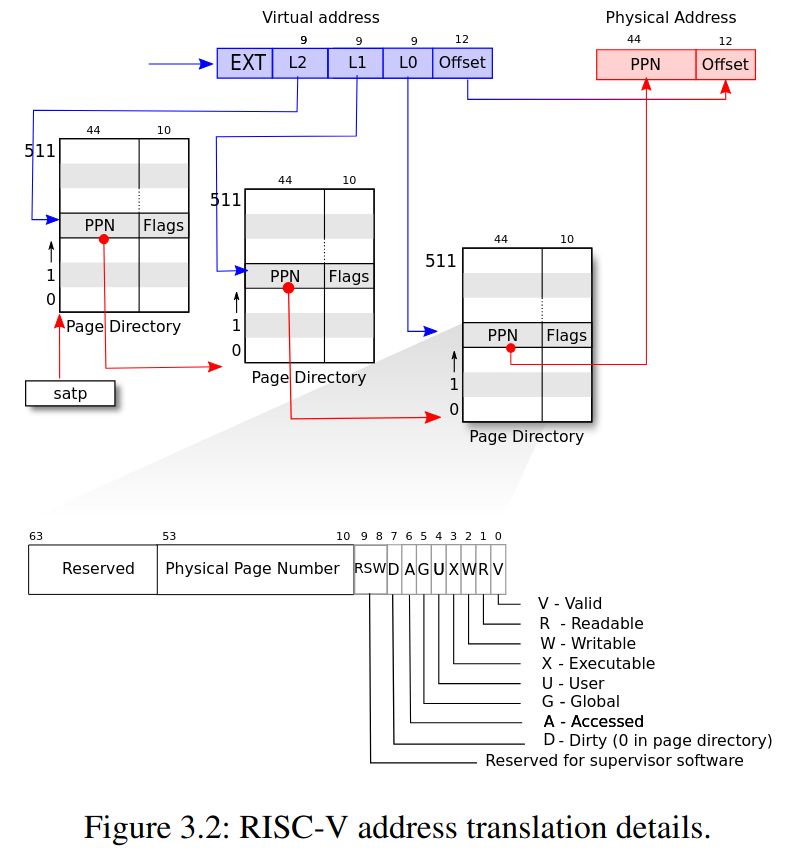

// The risc-v Sv39 scheme has three levels of page-table
// pages. A page-table page contains 512 64-bit PTEs.

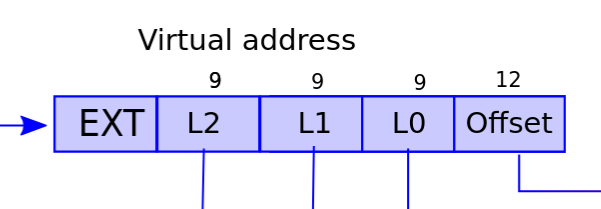

// A 64-bit virtual address is split into five fields:
//   39..63 -- must be zero.
//   30..38 -- 9 bits of level-2 index.
//   21..29 -- 9 bits of level-1 index.
//   12..20 -- 9 bits of level-0 index.
//    0..11 -- 12 bits of byte offset within the page.
pte_t *
walk(pagetable_t pagetable, uint64 va, int alloc) // pagetable 紀錄的是 pa
{
  if(va >= MAXVA)
    panic("walk");

  // level 只會是 2, 1,
  // (迴圈 level == 2 開始)
  // pagetable -> level 2 的 pagetable 的 pa
  // pte_t *pte = &pagetable[PX(2, va)]
      // -> (level 2 pagetable 中) 指向 level 1 的 pagetable 的 pte
  // pagetable = (pagetable_t)PTE2PA(*pte); -> pagetable 變成指向 level 1 的 pagetable
  // (迴圈 level == 1 開始)
  // pte_t *pte = &pagetable[PX(2, va)] -> 指向 level 0 的 pagetable 的 pte
      // -> (level 1 pagetable 中) 指向 level 0 的 pagetable 的 pte
  // pagetable = (pagetable_t)PTE2PA(*pte); -> pagetable 變成指向 level 0 的 pagetable
  for(int level = 2; level > 0; level--) {
    pte_t *pte = &pagetable[PX(level, va)]; // get pte by virtual address and level (in physical address)
    if(*pte & PTE_V) {
      pagetable = (pagetable_t)PTE2PA(*pte); // pagetable 是指向下一層的 pagetable
    } else {
      // 如果這個 PTE 還沒有被 allocate，並且 alloc != 0 (alloc == true 的意思)
      // 則 allocate 這個 PTE
      // 使用 kalloc() 告訴 xv6: 我要一塊 page 來存放一個 pagetable
      // (pte_t *) 是想表達 pagetable 是 pte_t 的 array 的意思
      if(!alloc || (pagetable = (pde_t*)kalloc()) == 0)
        return 0;
      // 清空這個新的 pagetable
      // (注意這時候，memset 吃的是 pa, 可是 user mode 時，function 吃的是 va)
      memset(pagetable, 0, PGSIZE);
      // 把這個新的 PTE 的 flag PTE_V set 為 1
      *pte = PA2PTE(pagetable) | PTE_V;
    }
  }

  // 到了這裡 pagetable 已經是一個指向 level 0 的 page table 的 pa
  // 有了這個 page table 以及 va 中 level 0 的 9 bits 的 index
  // 就可以拿到最終我們要的 PTE
  return &pagetable[PX(0, va)];
}

// Look up a virtual address, return the physical address,
// or 0 if not mapped.
// Can only be used to look up user pages.
uint64
walkaddr(pagetable_t pagetable, uint64 va)
{
  pte_t *pte;
  uint64 pa;

  if(va >= MAXVA)
    return 0;

  pte = walk(pagetable, va, 0);
  if(pte == 0)
    return 0;
  if((*pte & PTE_V) == 0)
    return 0;
  if((*pte & PTE_U) == 0)
    return 0;
  pa = PTE2PA(*pte);
  return pa;
}

// kernel/riscv.h
typedef uint64 pte_t;
typedef uint64 *pagetable_t; // 512 PTEs

// kernel/vm.c
int
mappages(pagetable_t pagetable, uint64 va, uint64 size, uint64 pa, int perm)
{
  uint64 a, last;
  pte_t *pte;

  if(size == 0)
    panic("mappages: size");

  // map 必須要以一個 page 為單位, 所以需要 round up 以及 round down
  a = PGROUNDDOWN(va);
  last = PGROUNDDOWN(va + size - 1);
  for(;;){
    // 拿到 virtual address a 的 pte (walk() 會幫我們 allocate, 它使用 kalloc())
    if((pte = walk(pagetable, a, 1)) == 0) // walk 失敗時 return 0
      return -1;
    if(*pte & PTE_V) // walk() 回傳的 pte 是還沒 set PTE_V 的
      panic("mappages: remap");

    // 在這裡，我們拿到了 level 0 pagetable 中對應到 va `a` 的 pte
    // 現在它還沒被賦予值，現在我們要告訴這個 PTE: 你要指到 pa 去!
    *pte = PA2PTE(pa) | perm | PTE_V; // pte 對應到了 pa
    if(a == last)
      break;
    a += PGSIZE;
    pa += PGSIZE;
  }
  return 0;
}

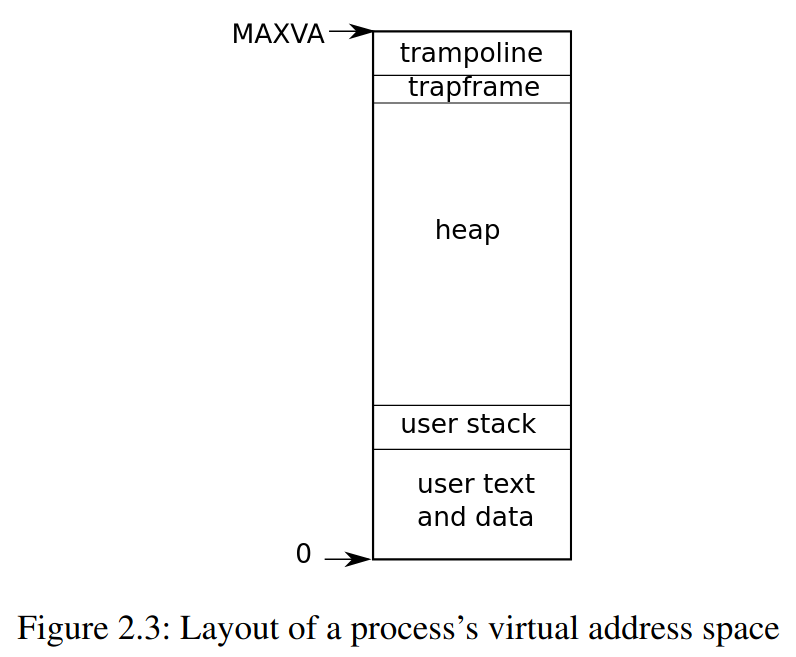

// Per-process state
struct proc {
  // ...
  pagetable_t pagetable; // proc_pagetable() 負責初始這裡
  // ...
};

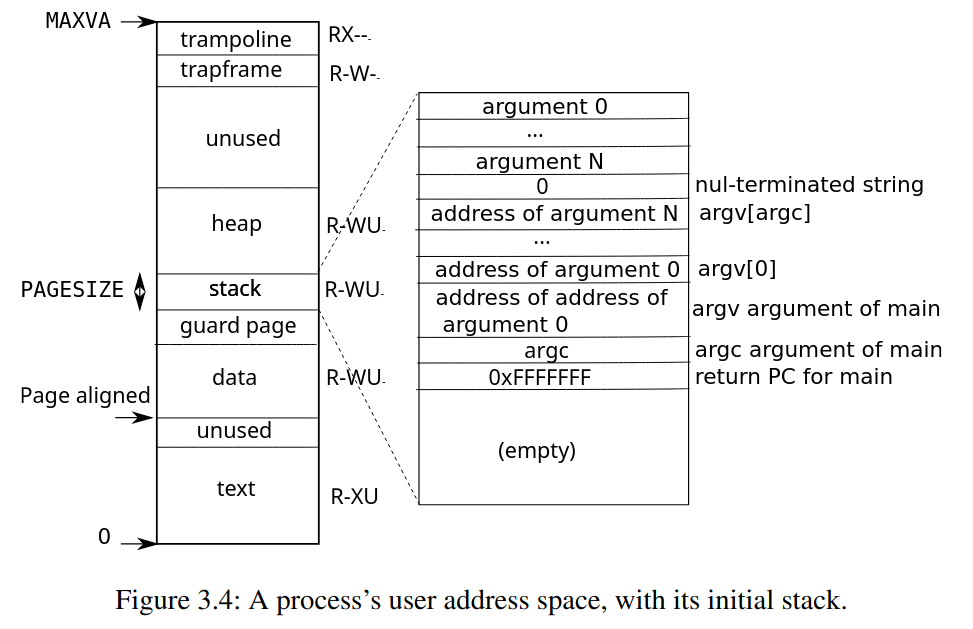

// Create a user page table for a given process, with no user memory,
// but with trampoline and trapframe pages.
// 把一個 process 的 pagetable 做出來，
// 但這時候只有 trampoline 跟 trapframe 有被紀錄在 page table 中
pagetable_t
proc_pagetable(struct proc *p)
{
  pagetable_t pagetable;

  // An empty page table.
  pagetable = uvmcreate();
  if(pagetable == 0)
    return 0;

  // map the trampoline code (for system call return)
  // at the highest user virtual address.
  // only the supervisor uses it, on the way
  // to/from user space, so not PTE_U.
  if(mappages(pagetable, TRAMPOLINE, PGSIZE,
              (uint64)trampoline, PTE_R | PTE_X) < 0){
    uvmfree(pagetable, 0);
    return 0;
  }

  // map the trapframe page just below the trampoline page, for
  // trampoline.S.
  if(mappages(pagetable, TRAPFRAME, PGSIZE,
              (uint64)(p->trapframe), PTE_R | PTE_W) < 0){
    uvmunmap(pagetable, TRAMPOLINE, 1, 0);
    uvmfree(pagetable, 0);
    return 0;
  }

  return pagetable;
}

// create an empty user page table.
// returns 0 if out of memory.
pagetable_t
uvmcreate()
{
  pagetable_t pagetable;
  pagetable = (pagetable_t) kalloc();
  if(pagetable == 0)
    return 0;
  memset(pagetable, 0, PGSIZE);
  return pagetable;
}

// Remove npages of mappings starting from va. va must be
// page-aligned. The mappings must exist.
// Optionally free the physical memory.
void
uvmunmap(pagetable_t pagetable, uint64 va, uint64 npages, int do_free)
{
  uint64 a;
  pte_t *pte;

  if((va % PGSIZE) != 0) // 傳進來的 va 應該要是 start of the pagetable
    panic("uvmunmap: not aligned");

  for(a = va; a < va + npages*PGSIZE; a += PGSIZE){
    // 如果這個要被 unmap 的 page (virtual address) 根本沒有 map 到 pa
    if((pte = walk(pagetable, a, 0)) == 0)
      panic("uvmunmap: walk");
    // 它應該要是 valid
    if((*pte & PTE_V) == 0)
      panic("uvmunmap: not mapped");
    if(PTE_FLAGS(*pte) == PTE_V)
      panic("uvmunmap: not a leaf");
    if(do_free){
      uint64 pa = PTE2PA(*pte);
      kfree((void*)pa);
    }
    *pte = 0;
  }
}

// Free user memory pages,
// then free page-table pages.
void
uvmfree(pagetable_t pagetable, uint64 sz)
{
  if(sz > 0)
    uvmunmap(pagetable, 0, PGROUNDUP(sz)/PGSIZE, 1);
  freewalk(pagetable);
}

// Recursively free page-table pages.
// All leaf mappings must already have been removed.
void
freewalk(pagetable_t pagetable)
{
  // there are 2^9 = 512 PTEs in a page table.
  for(int i = 0; i < 512; i++){
    pte_t pte = pagetable[i];
    if((pte & PTE_V) && (pte & (PTE_R|PTE_W|PTE_X)) == 0){
      // PTE_V 為 1 PTE_R, PTE_W, PTE_X 為 0 代表:
      // this PTE points to a lower-level page table.
      // 因為在 level 0 pagetable 中的 PTE 如果 PTE_V == 0
      // 必定 PTE_R, PTE_W, PTE_X 會有至少一個為 1
      uint64 child = PTE2PA(pte);
      freewalk((pagetable_t)child);
      pagetable[i] = 0;
    } else if(pte & PTE_V){
      // 在呼叫 freewalk() 之前，
      // caller (例如 uvmfree() )
      // 具有先將這段 va uvmunmap() 的責任
      // freewalk() 只負責清理 pagetable 的部份
      // 所以不該進到這個 condition
      panic("freewalk: leaf");
    }
  }
  kfree((void*)pagetable);
}

// Allocate one 4096-byte page of physical memory.
// Returns a pointer that the kernel can use.
// Returns 0 if the memory cannot be allocated.
void *
kalloc(void)
{
  struct run *r;

  acquire(&kmem.lock);
  r = kmem.freelist;
  if(r)
    kmem.freelist = r->next;
  release(&kmem.lock);

  if(r)
    memset((char*)r, 5, PGSIZE); // fill with junk
  return (void*)r;
}

struct run {
  struct run *next;
};

struct {
  struct spinlock lock;
  struct run *freelist;
} kmem;

// 把 old 的內容複製給 new
// sz 為 page 的數量，每個 page 的大小為 4096 byte
int
uvmcopy(pagetable_t old, pagetable_t new, uint64 sz)
{
  pte_t *pte;
  uint64 pa, i;
  uint flags;
  char *mem;

  for(i = 0; i < sz; i += PGSIZE){
    if((pte = walk(old, i, 0)) == 0)
      panic("uvmcopy: pte should exist");
    if((*pte & PTE_V) == 0)
      panic("uvmcopy: page not present");
    pa = PTE2PA(*pte); // 用 parent 的 pte 拿到 physical address
    flags = PTE_FLAGS(*pte); // 拿到 parent 的 pte 的 flags

    // mem 是 child 的 physical memory (其中一個 page, 目前是全新的)
    if((mem = kalloc()) == 0) // mem 是 child 的 physical memory (其中一個 page)
      goto err;
    memmove(mem, (char*)pa, PGSIZE); // parent 的內容搬到 child 的 memory 中 (都用 pa)
    // 現在有了 mem (一個 page 的 pa)
    // 接下來要把這個 page map 到 child 的 pagetable (new) 中
    if(mappages(new, i, PGSIZE, (uint64)mem, flags) != 0){
      kfree(mem);
      goto err;
    }
  }
  return 0;

 err:
  uvmunmap(new, 0, i / PGSIZE, 1);
  return -1;
}

void*
memmove(void *dst, const void *src, uint n)
{
  const char *s;
  char *d;

  if(n == 0)
    return dst;

  s = src;
  d = dst;
  if(s < d && s + n > d){
    s += n;
    d += n;
    while(n-- > 0)
      *--d = *--s;
  } else
    // 這個 loop 也寫的太 clever 了
    while(n-- > 0)
      *d++ = *s++;

  return dst;
}

void*
malloc(uint nbytes)
{
  Header *p, *prevp;
  uint nunits;

  nunits = (nbytes + sizeof(Header) - 1)/sizeof(Header) + 1;
  if((prevp = freep) == 0){
    base.s.ptr = freep = prevp = &base;
    base.s.size = 0;
  }
  for(p = prevp->s.ptr; ; prevp = p, p = p->s.ptr){
    if(p->s.size >= nunits){
      if(p->s.size == nunits)
        prevp->s.ptr = p->s.ptr;
      else {
        p->s.size -= nunits;
        p += p->s.size;
        p->s.size = nunits;
      }
      freep = prevp;
      return (void*)(p + 1);
    }
    if(p == freep)
      if((p = morecore(nunits)) == 0)
        return 0;
  }
}

// Copy from kernel to user.
// Copy len bytes from src to virtual address dstva in a given page table.
// Return 0 on success, -1 on error.
int
copyout(pagetable_t pagetable, uint64 dstva, char *src, uint64 len)
{
  uint64 n, va0, pa0;

  while(len > 0){
    va0 = PGROUNDDOWN(dstva);
    pa0 = walkaddr(pagetable, va0);
    if(pa0 == 0)
      return -1;
    n = PGSIZE - (dstva - va0);
    if(n > len)
      n = len;
    // 因為這裡吃的都是 pa
    memmove((void *)(pa0 + (dstva - va0)), src, n);

    len -= n;
    src += n;
    dstva = va0 + PGSIZE;
  }
  return 0;
}

// start() jumps here in supervisor mode on all CPUs.
void
main()
{
  if(cpuid() == 0){
    consoleinit();
    printfinit();
    printf("\n");
    printf("xv6 kernel is booting\n");
    printf("\n");
    kinit();         // physical page allocator
    kvminit();       // create kernel page table
    kvminithart();   // turn on paging
    // ...
  } else {
    // ...
  }

  scheduler();
}

// Initialize the one kernel_pagetable
void
kvminit(void)
{
  kernel_pagetable = kvmmake();
}

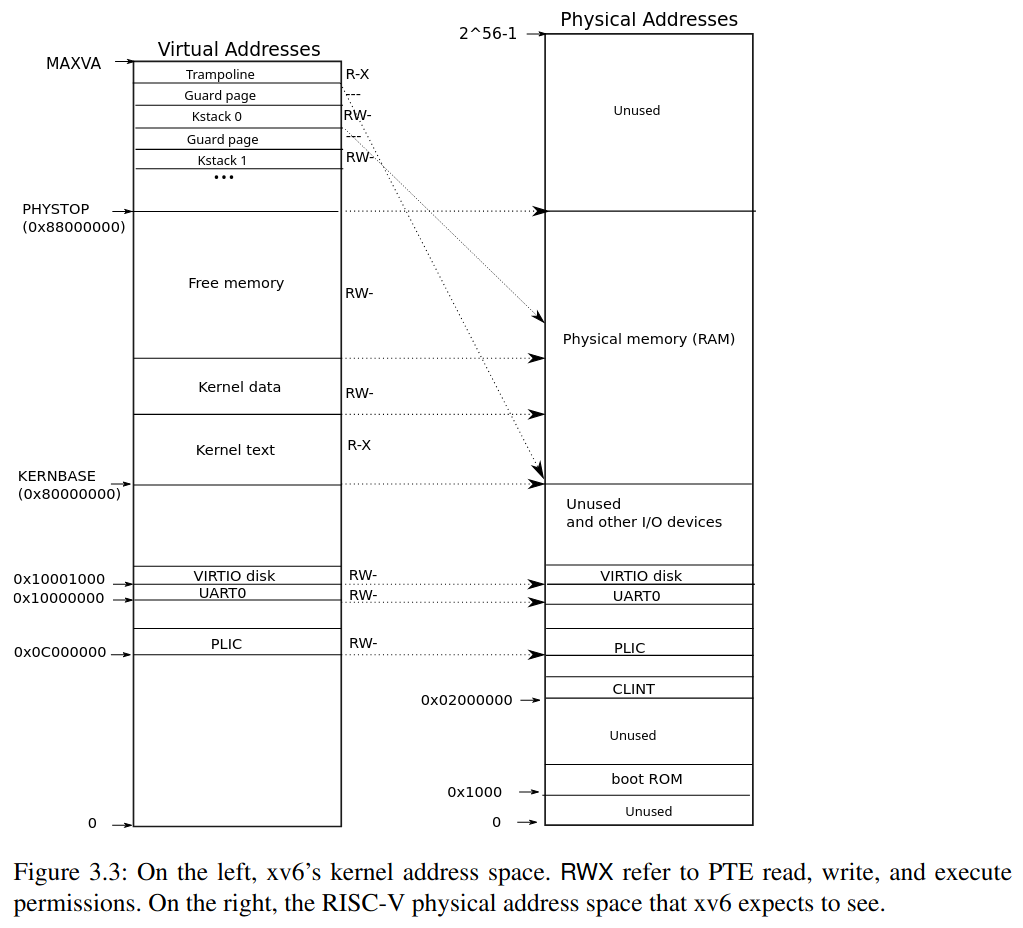

// Make a direct-map page table for the kernel.
pagetable_t
kvmmake(void)
{
  pagetable_t kpgtbl;

  // 初始一個 page
  kpgtbl = (pagetable_t) kalloc();
  memset(kpgtbl, 0, PGSIZE);

  // 使用 kvmmap() 把一些 mapping 填入 kpgtbl
  // uart registers
  kvmmap(kpgtbl, UART0, UART0, PGSIZE, PTE_R | PTE_W);

  // virtio mmio disk interface
  kvmmap(kpgtbl, VIRTIO0, VIRTIO0, PGSIZE, PTE_R | PTE_W);

  // PLIC
  kvmmap(kpgtbl, PLIC, PLIC, 0x400000, PTE_R | PTE_W);

  // map kernel text executable and read-only.
  kvmmap(kpgtbl, KERNBASE, KERNBASE, (uint64)etext-KERNBASE, PTE_R | PTE_X);

  // map direct mapping 的區段
  // map kernel data and the physical RAM we'll make use of.
  kvmmap(kpgtbl, (uint64)etext, (uint64)etext, PHYSTOP-(uint64)etext, PTE_R | PTE_W);

  // map the trampoline for trap entry/exit to
  // the highest virtual address in the kernel.
  kvmmap(kpgtbl, TRAMPOLINE, (uint64)trampoline, PGSIZE, PTE_R | PTE_X);

  // 每一個 process 都需要一個 kernel stack
  // allocate and map a kernel stack for each process.
  proc_mapstacks(kpgtbl);

  return kpgtbl;
}

// Allocate a page for each process's kernel stack.
// Map it high in memory, followed by an invalid
// guard page.
void
proc_mapstacks(pagetable_t kpgtbl)
{
  struct proc *p;

  for(p = proc; p < &proc[NPROC]; p++) {
    char *pa = kalloc();
    if(pa == 0)
      panic("kalloc");
    uint64 va = KSTACK((int) (p - proc));
    kvmmap(kpgtbl, va, (uint64)pa, PGSIZE, PTE_R | PTE_W);
  }
}

// add a mapping to the kernel page table.
// only used when booting.
// does not flush TLB or enable paging.
void
kvmmap(pagetable_t kpgtbl, uint64 va, uint64 pa, uint64 sz, int perm)
{
  if(mappages(kpgtbl, va, sz, pa, perm) != 0)
    panic("kvmmap");
}

// start() jumps here in supervisor mode on all CPUs.
void
main()
{
  if(cpuid() == 0){
    consoleinit();
    printfinit();
    printf("\n");
    printf("xv6 kernel is booting\n");
    printf("\n");
    kinit();         // physical page allocator
    kvminit();       // create kernel page table
    kvminithart();   // turn on paging
    // ...
  } else {
    // ...
  }

  scheduler();
}

// Switch h/w page table register to the kernel's page table,
// and enable paging.
void
kvminithart()
{
  // wait for any previous writes to the page table memory to finish.
  sfence_vma();

  w_satp(MAKE_SATP(kernel_pagetable));

  // flush stale entries from the TLB.
  sfence_vma();
}

struct run {
  struct run *next;
};

struct {
  struct spinlock lock;
  struct run *freelist;
} kmem;

extern char end[]; // first address after kernel.
                   // defined by kernel.ld.

// ...

void
kinit()
{
  initlock(&kmem.lock, "kmem");
  freerange(end, (void*)PHYSTOP);
}

void
freerange(void *pa_start, void *pa_end)
{
  char *p;
  p = (char*)PGROUNDUP((uint64)pa_start);
  for(; p + PGSIZE <= (char*)pa_end; p += PGSIZE)
    kfree(p);
}

// Free the page of physical memory pointed at by pa,
// which normally should have been returned by a
// call to kalloc().  (The exception is when
// initializing the allocator; see kinit above.)
void
kfree(void *pa)
{
  struct run *r;

  // 1. pa should be start of the page
  // 2. pa should be greater than "kerenl data" and "kernel text"
  // 3. pa should less than PHYSTOP == 0x88000000
  if(((uint64)pa % PGSIZE) != 0 || (char*)pa < end || (uint64)pa >= PHYSTOP)
    panic("kfree");

  // Fill with junk to catch dangling refs.
  memset(pa, 1, PGSIZE);

  r = (struct run*)pa;

  acquire(&kmem.lock);
  r->next = kmem.freelist;
  kmem.freelist = r;
  release(&kmem.lock);
}

uint64
sys_sbrk(void)
{
  uint64 addr;
  int n;

  argint(0, &n);
  if(growproc(n) < 0)
    return -1;
  myproc()->sz += n;
  return addr;
}

// Grow or shrink user memory by n bytes.
// Return 0 on success, -1 on failure.
int
growproc(int n)
{
  uint64 sz;
  struct proc *p = myproc();

  // 使用 uvmalloc() 或是 uvmdealloc 來達成 process 的縮放
  sz = p->sz;
  if(n > 0){
    if((sz = uvmalloc(p->pagetable, sz, sz + n, PTE_W)) == 0) {
      return -1;
    }
  } else if(n < 0){
    sz = uvmdealloc(p->pagetable, sz, sz + n);
  }
  p->sz = sz;
  return 0;
}

// Allocate PTEs and physical memory to grow process from oldsz to
// newsz, which need not be page aligned.  Returns new size or 0 on error.
uint64
uvmalloc(pagetable_t pagetable, uint64 oldsz, uint64 newsz, int xperm)
{
  char *mem;
  uint64 a;

  if(newsz < oldsz)
    return oldsz;

  oldsz = PGROUNDUP(oldsz);
  for(a = oldsz; a < newsz; a += PGSIZE){

    // 順利的情形之下就是:
    // 1. kalloc() a new page
    // 2. mappages(): a -> newpage
    mem = kalloc();
    if(mem == 0){
      uvmdealloc(pagetable, a, oldsz);
      return 0;
    }
    memset(mem, 0, PGSIZE);
    if(mappages(pagetable, a, PGSIZE, (uint64)mem, PTE_R|PTE_U|xperm) != 0){
      kfree(mem);
      uvmdealloc(pagetable, a, oldsz);
      return 0;
    }
  }
  return newsz;
}

// Deallocate user pages to bring the process size from oldsz to
// newsz.  oldsz and newsz need not be page-aligned, nor does newsz
// need to be less than oldsz.  oldsz can be larger than the actual
// process size.  Returns the new process size.
uint64
uvmdealloc(pagetable_t pagetable, uint64 oldsz, uint64 newsz)
{
  // newsz 應該要比較小，這裡是為了縮小成 newsz 而存在的
  if(newsz >= oldsz)
    return oldsz;

  // 把多餘的 page 都 unmap 掉，並且使用 kfree() 的版本
  if(PGROUNDUP(newsz) < PGROUNDUP(oldsz)){
    int npages = (PGROUNDUP(oldsz) - PGROUNDUP(newsz)) / PGSIZE;
    uvmunmap(pagetable, PGROUNDUP(newsz), npages, 1);
  }

  return newsz;
}

// Remove npages of mappings starting from va. va must be
// page-aligned. The mappings must exist.
// Optionally free the physical memory.
// 對於 pagetable, 從 va 開始，unmap 掉 npages 個 page
void
uvmunmap(pagetable_t pagetable, uint64 va, uint64 npages, int do_free)
{
  uint64 a;
  pte_t *pte;

  if((va % PGSIZE) != 0)
    panic("uvmunmap: not aligned");

  // 迭代所有需要 unmap 的 virtual address a
  for(a = va; a < va + npages*PGSIZE; a += PGSIZE){
    if((pte = walk(pagetable, a, 0)) == 0)
      panic("uvmunmap: walk");
    // 原本根本就沒有這筆 mapping
    if((*pte & PTE_V) == 0)
      panic("uvmunmap: not mapped");
    // 照理來說 walk() 應該會 return 一個 feaf
    if(PTE_FLAGS(*pte) == PTE_V)
      panic("uvmunmap: not a leaf");
    // 可以選擇要不要 do_free, 以 uvmunmap() 的例子來說，要 do_free
    if(do_free){
      uint64 pa = PTE2PA(*pte);
      kfree((void*)pa);
    }
    *pte = 0;
  }
}

uint64
sys_exec(void)
{
  char path[MAXPATH], *argv[MAXARG];
  int i;
  uint64 uargv, uarg;

  argaddr(1, &uargv);
  if(argstr(0, path, MAXPATH) < 0) {
    return -1;
  }
  memset(argv, 0, sizeof(argv));
  for(i=0;; i++){
    if(i >= NELEM(argv)){
      goto bad;
    }
    if(fetchaddr(uargv+sizeof(uint64)*i, (uint64*)&uarg) < 0){
      goto bad;
    }
    if(uarg == 0){
      argv[i] = 0;
      break;
    }
    argv[i] = kalloc();
    if(argv[i] == 0)
      goto bad;
    if(fetchstr(uarg, argv[i], PGSIZE) < 0)
      goto bad;
  }

  int ret = exec(path, argv);

  for(i = 0; i < NELEM(argv) && argv[i] != 0; i++)
    kfree(argv[i]);

  return ret;

 bad:
  for(i = 0; i < NELEM(argv) && argv[i] != 0; i++)
    kfree(argv[i]);
  return -1;
}

int
exec(char *path, char **argv)
{
  char *s, *last;
  int i, off;
  uint64 argc, sz = 0, sp, ustack[MAXARG], stackbase;
  struct elfhdr elf;
  struct inode *ip;
  struct proghdr ph;
  pagetable_t pagetable = 0, oldpagetable;
  struct proc *p = myproc();

  begin_op();

  if((ip = namei(path)) == 0){
    end_op();
    return -1;
  }
  ilock(ip);

  // Check ELF header
  if(readi(ip, 0, (uint64)&elf, 0, sizeof(elf)) != sizeof(elf))
    goto bad;

  if(elf.magic != ELF_MAGIC)
    goto bad;

  if((pagetable = proc_pagetable(p)) == 0)
    goto bad;

  // Load program into memory.
  for(i=0, off=elf.phoff; i<elf.phnum; i++, off+=sizeof(ph)){
    if(readi(ip, 0, (uint64)&ph, off, sizeof(ph)) != sizeof(ph))
      goto bad;
    if(ph.type != ELF_PROG_LOAD)
      continue;
    if(ph.memsz < ph.filesz)
      goto bad;
    if(ph.vaddr + ph.memsz < ph.vaddr)
      goto bad;
    if(ph.vaddr % PGSIZE != 0)
      goto bad;
    uint64 sz1;
    if((sz1 = uvmalloc(pagetable, sz, ph.vaddr + ph.memsz, flags2perm(ph.flags))) == 0)
      goto bad;
    sz = sz1;
    if(loadseg(pagetable, ph.vaddr, ip, ph.off, ph.filesz) < 0)
      goto bad;
  }
  iunlockput(ip);
  end_op();
  ip = 0;

  p = myproc();
  uint64 oldsz = p->sz;

  // Allocate two pages at the next page boundary.
  // Make the first inaccessible as a stack guard.
  // Use the second as the user stack.
  sz = PGROUNDUP(sz);
  uint64 sz1;
  if((sz1 = uvmalloc(pagetable, sz, sz + 2*PGSIZE, PTE_W)) == 0)
    goto bad;
  sz = sz1;
  uvmclear(pagetable, sz-2*PGSIZE);
  sp = sz;
  stackbase = sp - PGSIZE;

  // Push argument strings, prepare rest of stack in ustack.
  for(argc = 0; argv[argc]; argc++) {
    if(argc >= MAXARG)
      goto bad;
    sp -= strlen(argv[argc]) + 1;
    sp -= sp % 16; // riscv sp must be 16-byte aligned
    if(sp < stackbase)
      goto bad;
    if(copyout(pagetable, sp, argv[argc], strlen(argv[argc]) + 1) < 0)
      goto bad;
    ustack[argc] = sp;
  }
  ustack[argc] = 0;

  // push the array of argv[] pointers.
  sp -= (argc+1) * sizeof(uint64);
  sp -= sp % 16;
  if(sp < stackbase)
    goto bad;
  if(copyout(pagetable, sp, (char *)ustack, (argc+1)*sizeof(uint64)) < 0)
    goto bad;

  // arguments to user main(argc, argv)
  // argc is returned via the system call return
  // value, which goes in a0.
  p->trapframe->a1 = sp;

  // Save program name for debugging.
  for(last=s=path; *s; s++)
    if(*s == '/')
      last = s+1;
  safestrcpy(p->name, last, sizeof(p->name));

  // Commit to the user image.
  oldpagetable = p->pagetable;
  p->pagetable = pagetable;
  p->sz = sz;
  p->trapframe->epc = elf.entry;  // initial program counter = main
  p->trapframe->sp = sp; // initial stack pointer
  proc_freepagetable(oldpagetable, oldsz);

  return argc; // this ends up in a0, the first argument to main(argc, argv)

 bad:
  if(pagetable)
    proc_freepagetable(pagetable, sz);
  if(ip){
    iunlockput(ip);
    end_op();
  }
  return -1;
}

struct inode*
namei(char *path)
{
  char name[DIRSIZ];
  return namex(path, 0, name);
}

// Format of an ELF executable file

#define ELF_MAGIC 0x464C457FU  // "\x7FELF" in little endian

// File header
struct elfhdr {
  uint magic;  // must equal ELF_MAGIC
  uchar elf[12];
  ushort type;
  ushort machine;
  uint version;
  uint64 entry;
  uint64 phoff;
  uint64 shoff;
  uint flags;
  ushort ehsize;
  ushort phentsize;
  ushort phnum;
  ushort shentsize;
  ushort shnum;
  ushort shstrndx;
};

// Program section header
struct proghdr {
  uint32 type;
  uint32 flags;
  uint64 off;
  uint64 vaddr;
  uint64 paddr;
  uint64 filesz;
  uint64 memsz;
  uint64 align;
};

// Values for Proghdr type
#define ELF_PROG_LOAD           1

// Flag bits for Proghdr flags
#define ELF_PROG_FLAG_EXEC      1
#define ELF_PROG_FLAG_WRITE     2
#define ELF_PROG_FLAG_READ      4
