[xv6 學習紀錄 05] Lab: xv6 lazy page allocation

Lab 連結: Lab: xv6 lazy page allocation

Eliminate allocation from sbrk() (easy)

Your first task is to delete page allocation from the sbrk(n) system call implementation, which is the function sys_sbrk() in sysproc.c. The sbrk(n) system call grows the process’s memory size by n bytes, and then returns the start of the newly allocated region (i.e., the old size). Your new sbrk(n) should just increment the process’s size (myproc()->sz) by n and return the old size. It should not allocate memory – so you should delete the call to growproc() (but you still need to increase the process’s size!).

origin sys_sbrk():

uint64
sys_sbrk(void)
{
  int addr;
  int n;

  if(argint(0, &n) < 0)
    return -1;
  addr = myproc()->sz;
  if(growproc(n) < 0)
    return -1;
  return addr;
}

題目要我們改成這樣：

uint64
sys_sbrk(void)
{
  uint64 addr;
  int n;

  argint(0, &n);
  addr = myproc()->sz;
  // if(growproc(n) < 0)
  //   return -1;
  myproc()->sz += n;
  return addr;
}

接著執行 echo hi 的結果：

xv6 kernel is booting

hart 2 starting
hart 1 starting
init: starting sh
$ echo hi
usertrap(): unexpected scause 0x000000000000000f pid=3
            sepc=0x00000000000012c4 stval=0x0000000000005008
panic: uvmunmap: not mapped

錯誤訊息解釋

usertrap():
- 這些錯誤訊息是從 kernel/trap.c: usertrap() 產生出來的
unexpected scause 0x000000000000000f:
- register scause = 0x0f，是 page fault (TODO: 貼上來源)
pid = 3 是 sh 的 pid
- 在後面用 gdb 分析會知道這是 sh
sepc=0x00000000000012c4:
- 對應到 sh.asm 中的 12ac: ld ra,56(sp)
stval=0x0000000000004008:
- 造成 page trap 的 virtual memory

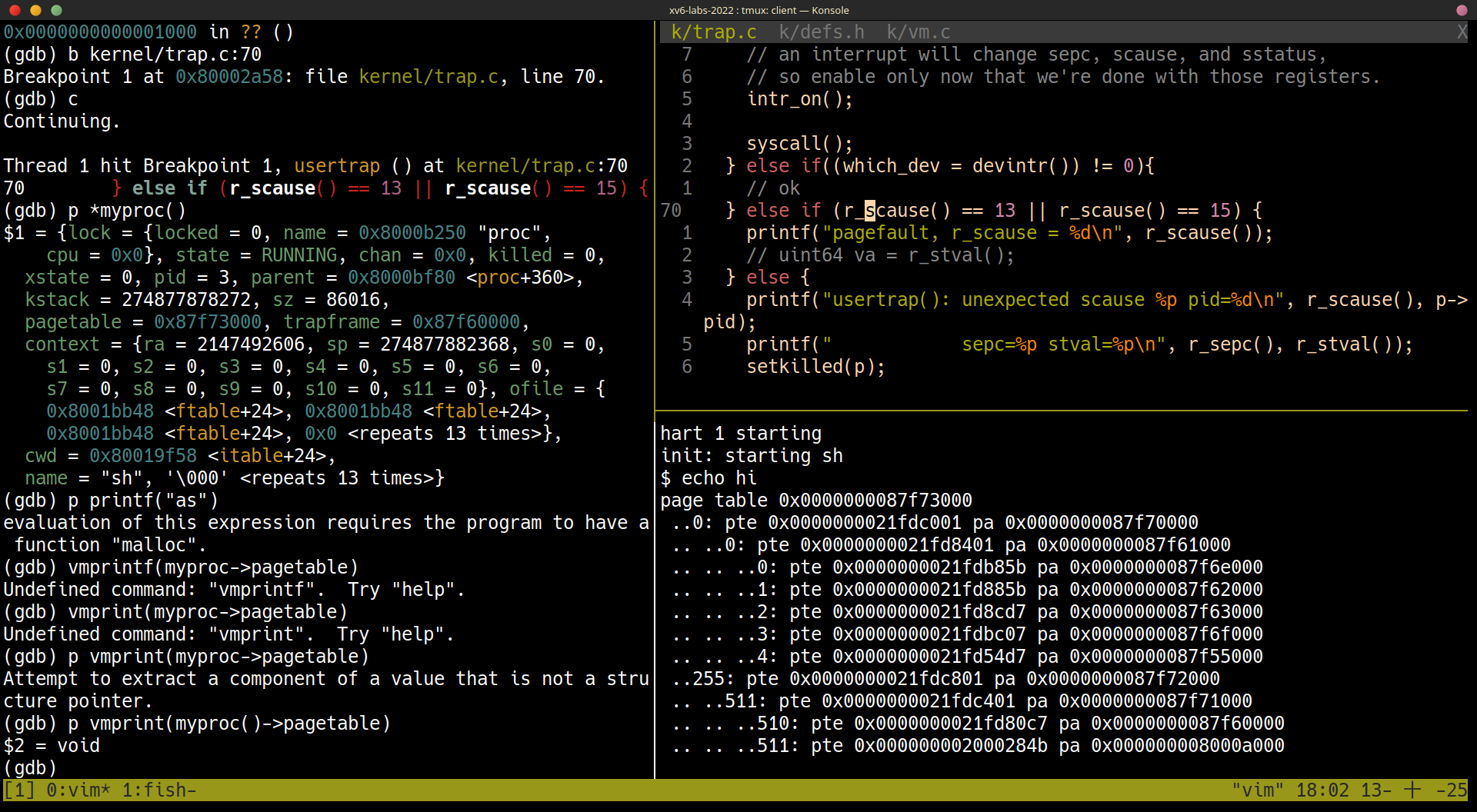

使用 `gdb` 解析

(gdb) b kernel/trap.c:70
(gdb) c

scause
sepc
stval
struct proc p

(gdb) p *p

malloc()

(gdb) add-symbol-file user/_sh

sh.c 透過 user/user.h 引入 user/umalloc.c 的 malloc.c

(gdb) b user/umalloc.c:malloc

問題發生在 sh -> malloc() -> morecore()

(TODO: more detailed, 說明跟 sbrk() 的關係為何)

Lazy allocation (moderate)

Modify the code in trap.c to respond to a page fault from user space by mapping a newly-allocated page of physical memory at the faulting address, and then returning back to user space to let the process continue executing. You should add your code just before the printf call that produced the “usertrap(): ...” message. Modify whatever other xv6 kernel code you need to in order to get echo hi to work.

當 page fault 發生時：

確認情形是正常的
allocate 一個新的 page 並且做 mapping
處理完 page fault 之後要回到原本的 user process 繼續執行

把程式碼加在這裡

  } else {
    // TODO
    printf("usertrap(): unexpected scause %p pid=%d\n", r_scause(), p->pid);
    printf("            sepc=%p stval=%p\n", r_sepc(), r_stval());
    setkilled(p);
  }

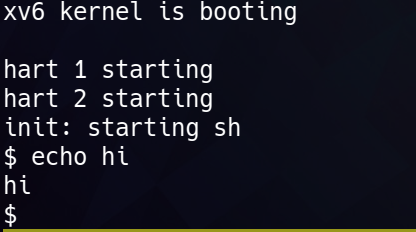

處理完之後，echo hi 應該要可以正常執行

這裡我要先用 gdb debug 時，發現沒辦法設定到想要的地方，先把 CFLAGS 中的 -O 移除

make CFLAGS="-Wall -Werror -fno-omit-frame-pointer -ggdb -gdwarf-2 -DSOL_TRAPS -DLAB_TRAPS -MD -mcmodel=medany -ffreestanding -fno-common -nostdlib -mno-relax -I. -fno-stack-protector -fno-pie -no-pie" qemu-gdb

(注意要先 make clean 之後才會有效果)

(gdb) p *myproc()
$2 = {lock = {locked = 0, name = 0x8000b170 "proc", cpu = 0x0},
  state = RUNNING, chan = 0x0, killed = 0, xstate = 0, pid = 3,
  parent = 0x8000bea0 <proc+360>, kstack = 274877878272,
  sz = 86016, pagetable = 0x87f73000, trapframe = 0x87f60000,
  context = {ra = 2147492142, sp = 274877882368, s0 = 0,
    s1 = 0, s2 = 0, s3 = 0, s4 = 0, s5 = 0, s6 = 0, s7 = 0,
    s8 = 0, s9 = 0, s10 = 0, s11 = 0}, ofile = {
    0x8001ba68 <ftable+24>, 0x8001ba68 <ftable+24>,
    0x8001ba68 <ftable+24>, 0x0 <repeats 13 times>},
  cwd = 0x80019e78 <itable+24>,
  name = "sh", '\000' <repeats 13 times>}
(gdb) p/x myproc()->sz
$3 = 0x15000
(gdb) p/x $stval
$4 = 0x5008

page table 0x0000000087f73000
 ..0: pte 0x0000000021fdc001 pa 0x0000000087f70000
 .. ..0: pte 0x0000000021fd8401 pa 0x0000000087f61000
 .. .. ..0: pte 0x0000000021fdb85b pa 0x0000000087f6e000
 .. .. ..1: pte 0x0000000021fd885b pa 0x0000000087f62000
 .. .. ..2: pte 0x0000000021fd8cd7 pa 0x0000000087f63000
 .. .. ..3: pte 0x0000000021fdbc07 pa 0x0000000087f6f000
 .. .. ..4: pte 0x0000000021fd54d7 pa 0x0000000087f55000
 ..255: pte 0x0000000021fdc801 pa 0x0000000087f72000
 .. ..511: pte 0x0000000021fdc401 pa 0x0000000087f71000
 .. .. ..510: pte 0x0000000021fd80c7 pa 0x0000000087f60000 # trapframe
 .. .. ..511: pte 0x000000002000284b pa 0x000000008000a000 # trampoline

myproc()->sz: 0x15000
stval: 0x5008
實際 pagetable 的內容，總共只有 5 個 page (不算 trampoline and trapframe)
- 實際 size 為 5 * PGSIZE = 0x5000 (所以想 access va 0x5008 時會 page fault)

解決方法：

sys_sbrk()
- growproc()
  - uvmalloc() 原本的呼叫如上，最終使用 uvmalloc()，因此學習 uvmalloc() 的作法，理論上可以讓 echo hi 正常執行
kernel/vm.c:

// Allocate PTEs and physical memory to grow process from oldsz to
// newsz, which need not be page aligned.  Returns new size or 0 on error.
uint64
uvmalloc(pagetable_t pagetable, uint64 oldsz, uint64 newsz, int xperm)
{
  char *mem;
  uint64 a;

  if(newsz < oldsz)
    return oldsz;

  oldsz = PGROUNDUP(oldsz);
  for(a = oldsz; a < newsz; a += PGSIZE){
    mem = kalloc();
    if(mem == 0){
      uvmdealloc(pagetable, a, oldsz);
      return 0;
    }
    memset(mem, 0, PGSIZE);
    if(mappages(pagetable, a, PGSIZE, (uint64)mem, PTE_R|PTE_U|xperm) != 0){
      kfree(mem);
      uvmdealloc(pagetable, a, oldsz);
      return 0;
    }
  }
  return newsz;
}

原先版本中的 uvmalloc() 是多 alloc 了多個 page，現在在這裡的版本只需要多 alloc 現在這個 va ($stval) 這一個 page 就好，之後如果又有沒有 allocate 的 page，就一樣會來到 page fault 的這裡，然後一樣專注於一個 page 的處理

void
usertrap(void)
{
  // ...
  } else if((which_dev = devintr()) != 0){
    // ok
  } else if(r_scause() == 13 || r_scause() == 15){
    uint64 va = r_stval();
    lazy_alloc(va);
  } else {
    printf("usertrap(): unexpected scause %p pid=%d\n", r_scause(), p->pid);
    printf("            sepc=%p stval=%p\n", r_sepc(), r_stval());
    p->killed = 1;
  }

  // ...
}

// Returns 0 on success, -1 if not
int
lazy_alloc(uint64 va)
{
  char *mem;
  uint64 a;

  a = PGROUNDDOWN(va);
  mem = kalloc();
  memset(mem, 0, PGSIZE);
  if(mappages(myproc()->pagetable, a, PGSIZE, (uint64)mem, PTE_R|PTE_U|PTE_W) != 0){
    kfree(mem);
    return -1;
  }
  return 0;
}

void
uvmunmap(pagetable_t pagetable, uint64 va, uint64 npages, int do_free)
{
  uint64 a;
  pte_t *pte;

  if((va % PGSIZE) != 0)
    panic("uvmunmap: not aligned");

  for(a = va; a < va + npages*PGSIZE; a += PGSIZE){
    if((pte = walk(pagetable, a, 0)) == 0)
      // panic("uvmunmap: walk");
      continue;
    if((*pte & PTE_V) == 0)
      // panic("uvmunmap: not mapped");
      continue;
    if(PTE_FLAGS(*pte) == PTE_V)
      panic("uvmunmap: not a leaf");
    if(do_free){
      uint64 pa = PTE2PA(*pte);
      kfree((void*)pa);
    }
    *pte = 0;
  }
}

在 lazy allocation 的設計底下，PTE_V == 0 本來就是正常的

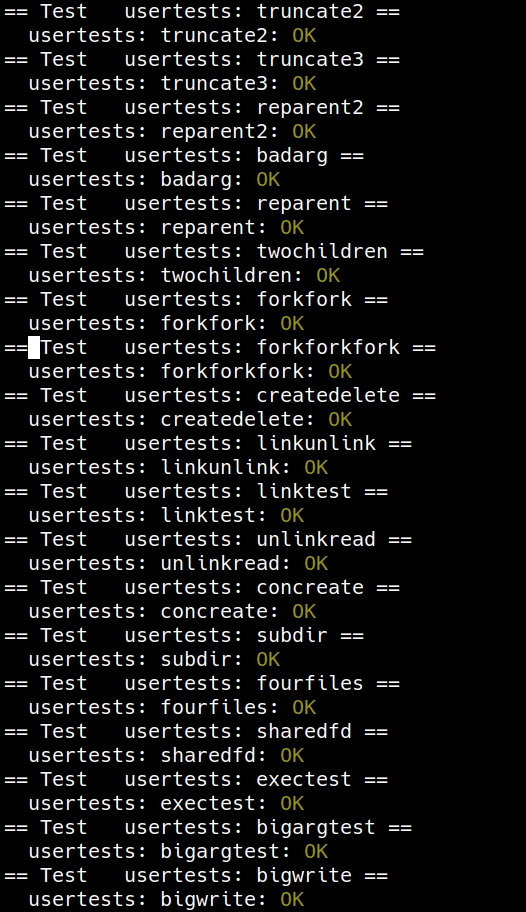

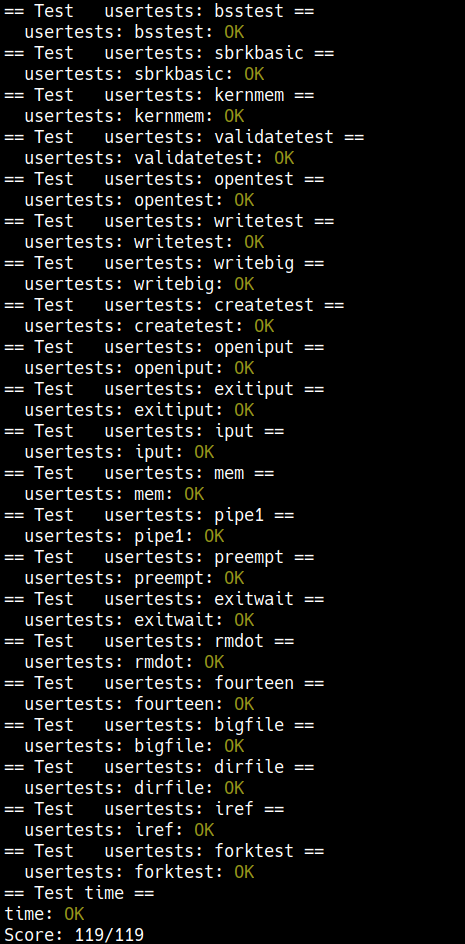

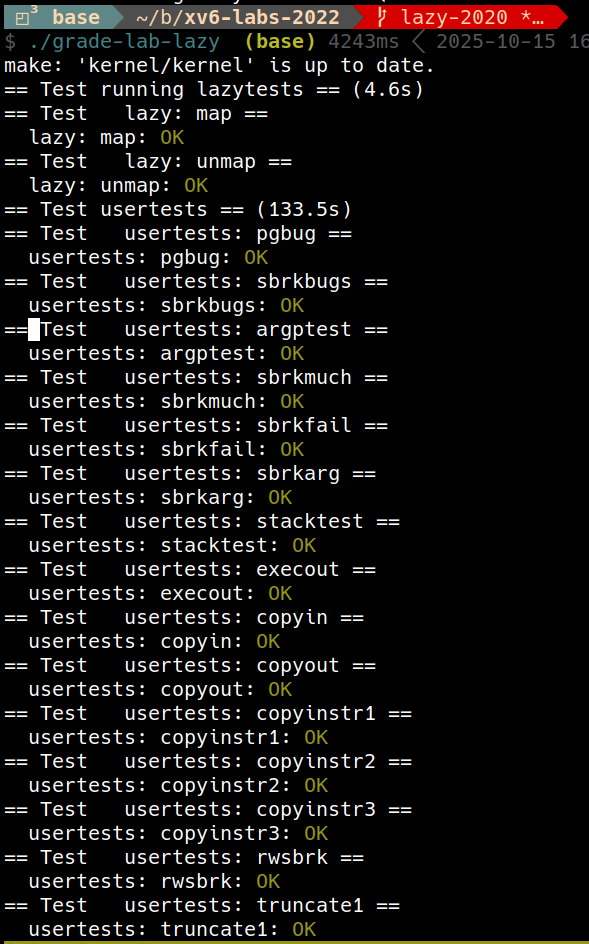

Lazytests and Usertests (moderate)

We’ve supplied you with lazytests, an xv6 user program that tests some specific situations that may stress your lazy memory allocator. Modify your kernel code so that all of both lazytests and usertests pass.
Handle negative sbrk() arguments.
Kill a process if it page-faults on a virtual memory address higher than any allocated with sbrk().
Handle the parent-to-child memory copy in fork() correctly.
Handle the case in which a process passes a valid address from sbrk() to a system call such as read or write, but the memory for that address has not yet been allocated.
Handle out-of-memory correctly: if kalloc() fails in the page fault handler, kill the current process.
Handle faults on the invalid page below the user stack.

目前的 lazy test 還有很多破綻，現在來一個一個的解決

Handle negative sbrk() arguments.

kernel/sysproc.c: sys_sbrk(): 縮小的時候就還是跟原版的一樣使用 growproc() 去處裡就行了，growproc() 會有幫我們 kfree 不需要的 page 的作用

uint64
sys_sbrk(void)
{
  uint64 addr;
  int n;
  struct proc *p = myproc();


  addr = p->sz;
  if (argint(0, &n))
    return 0;
  if (n < 0) {
    if (p->sz + n < 0)
      return -1;
    if (growproc(n) < 0)
      return -1;
  } else {
    myproc()->sz += n;
  }
  return addr;
}

Kill a process if it page-faults on a virtual memory address higher than any allocated with sbrk().

usertrap() 在處理 page fualt 時，也不是所有 page fault 都符合，lazy allocation 的條件，例如 stval 中的 va 大於 size 的時候，就還是一個確確實實的錯誤情況，在這個情況下，把這個 process kill 掉

以下幾種方情況並不是 lazy allocation 的情形

va > MAXVA
如果一個 page 的 PTE_V == 1 那麼他就一定不是 lazy alloc, 因為它已經被分配了
va >= p->sz 因為並沒有藉由 sbrk() 去新增位置

解決方法:

int
is_lazy_addr(int va)
{
  struct proc *p = myproc();

  if (va > MAXVA)
    return 0;
  pte_t *pte = walk(p->pagetable, va, 0);
  if (pte && (*pte & PTE_V))
    return 0;
  if (PGROUNDDOWN(va) > PGROUNDDOWN(p->sz))
    return 0;
  return 1;
}

kernel/trap.c: usertrap()

void
usertrap(void)
{
  // ...
  } else if((which_dev = devintr()) != 0){
    // ok
  } else if(r_scause() == 13 || r_scause() == 15){
    struct proc *p = myproc();
    uint64 va = r_stval();

    if (is_lazy_addr(va)) {
      if (lazy_alloc(va) < 0)
        p->killed = 1;
    } else {
      p->killed = 1;
    }
  } else {
    printf("usertrap(): unexpected scause %p pid=%d\n", r_scause(), p->pid);
    printf("            sepc=%p stval=%p\n", r_sepc(), r_stval());
    p->killed = 1;
  }

  // ...
}

Handle the parent-to-child memory copy in fork() correctly.

主要在講 kernel/proc.c: fork() 中的呼叫的，kernel/vm.c: uvmcopy 原本的 uvmcopy 是 copy 一段連續的 memory, 可是現在使用 lazy alloc 了話，就不一定是連續的

kernel/proc.c: fork()

int
fork(void)
{
  int i, pid;
  struct proc *np;
  struct proc *p = myproc();

  // Allocate process.
  if((np = allocproc()) == 0){
    return -1;
  }

  // Copy user memory from parent to child.
  // 這裡使用 uvmcopy()
  if(uvmcopy(p->pagetable, np->pagetable, p->sz) < 0){
    freeproc(np);
    release(&np->lock);
    return -1;
  }
  np->sz = p->sz;

  // copy saved user registers.
  *(np->trapframe) = *(p->trapframe);

  // Cause fork to return 0 in the child.
  np->trapframe->a0 = 0;

  // increment reference counts on open file descriptors.
  for(i = 0; i < NOFILE; i++)
    if(p->ofile[i])
      np->ofile[i] = filedup(p->ofile[i]);
  np->cwd = idup(p->cwd);

  safestrcpy(np->name, p->name, sizeof(p->name));

  pid = np->pid;

  release(&np->lock);

  acquire(&wait_lock);
  np->parent = p;
  release(&wait_lock);

  acquire(&np->lock);
  np->state = RUNNABLE;
  release(&np->lock);

  return pid;
}

kernel/vm.c: uvmcopy

int
uvmcopy(pagetable_t old, pagetable_t new, uint64 sz)
{
  pte_t *pte;
  uint64 pa, i;
  uint flags;
  char *mem;

  for(i = 0; i < sz; i += PGSIZE){
    // 在 lazy allocation 的設計中，沒有找到對應的 pte 是正常的
    if((pte = walk(old, i, 0)) == 0)
      // panic("uvmcopy: pte should exist");
      continue;
    // 在 lazy allocation 的設計中，PTE_V == 0 是正常的
    if((*pte & PTE_V) == 0)
      // panic("uvmcopy: page not present");
      continue;
    pa = PTE2PA(*pte);
    flags = PTE_FLAGS(*pte);
    if((mem = kalloc()) == 0)
      goto err;
    memmove(mem, (char*)pa, PGSIZE);
    if(mappages(new, i, PGSIZE, (uint64)mem, flags) != 0){
      kfree(mem);
      goto err;
    }
  }
  return 0;

 err:
  uvmunmap(new, 0, i / PGSIZE, 1);
  return -1;
}

Handle the case in which a process passes a valid address from sbrk() to a system call such as read or write, but the memory for that address has not yet been allocated.

這裡在說的是如果是在 system call 如 read() 或是 write() 的過程中使用 lazy address，會發生問題，因為目前只有處理 user program 所產生的 page fault, 並沒有處理 system call 所產生的 page fault

例如可以像是

char buf[1024];

像是這種時候，buf 有可能是 lazy allocation，在之後如果利用 write 對於 buf 的操作會造成 page fault 但這時候已經進入到 supervisor mode 了，會無法進入到我們目前處理 page fault 的 usertrap()

流程:

kernel/sysfile.c: sys_write()
- kernel/file.c: filewrite()
  - kernel/pipe.c: pipewrite()
    - kernel/vm.c: copyin()
      - kernel/vm.c: walkaddr()
        kernel/vm.c: walk()
kernel/vm.c: copyin()

// Copy from user to kernel.
// Copy len bytes to dst from virtual address srcva in a given page table.
// Return 0 on success, -1 on error.
int
copyin(pagetable_t pagetable, char *dst, uint64 srcva, uint64 len)
{
  uint64 n, va0, pa0;

  while(len > 0){
    va0 = PGROUNDDOWN(srcva);
    pa0 = walkaddr(pagetable, va0); // 這個 va0 有可能是一個 lazy address
    if(pa0 == 0)
      return -1;
    n = PGSIZE - (srcva - va0);
    if(n > len)
      n = len;
    memmove(dst, (void *)(pa0 + (srcva - va0)), n);

    len -= n;
    dst += n;
    srcva = va0 + PGSIZE;
  }
  return 0;
}

kernel/vm.c: walkaddr()

// Look up a virtual address, return the physical address,
// or 0 if not mapped.
// Can only be used to look up user pages.
uint64
walkaddr(pagetable_t pagetable, uint64 va)
{
  pte_t *pte;
  uint64 pa;

  if(va >= MAXVA)
    return 0;

  pte = walk(pagetable, va, 0); // 如果是 lazy address 這裡應該會 walk 不出來
  if(pte == 0)
    return 0;
  if((*pte & PTE_V) == 0)
    return 0;
  if((*pte & PTE_U) == 0)
    return 0;
  pa = PTE2PA(*pte);
  return pa;
}

kernel/vm.c: walk()

pte_t *
walk(pagetable_t pagetable, uint64 va, int alloc)
{
  if(va >= MAXVA)
    panic("walk");

  for(int level = 2; level > 0; level--) {
    pte_t *pte = &pagetable[PX(level, va)];
    if(*pte & PTE_V) {
      pagetable = (pagetable_t)PTE2PA(*pte);
    } else {
      // 在 lazy address 的情況下，因為還沒有 allocate 所以會進入到這裡來
      // 最終會回傳 0
      if(!alloc || (pagetable = (pde_t*)kalloc()) == 0)
        return 0;
      memset(pagetable, 0, PGSIZE);
      *pte = PA2PTE(pagetable) | PTE_V;
    }
  }
  return &pagetable[PX(0, va)];
}

解決方法：在 walkaddr() 遇到一個 lazy address 時，allocate 一個 page

kernel/vm.c: walkaddr()

uint64
walkaddr(pagetable_t pagetable, uint64 va)
{
  pte_t *pte;
  uint64 pa;

  if(va >= MAXVA)
    return 0;

  pte = walk(pagetable, va, 0);
  if (pte == 0 || (*pte & PTE_V) == 0) {
    struct proc *p = myproc();
    if(va >= p->sz || va < PGROUNDUP(p->trapframe->sp)) return 0;
    pa = (uint64)kalloc();
    if (pa == 0) return 0;
    if (mappages(p->pagetable, va, PGSIZE, pa, PTE_W|PTE_R|PTE_U|PTE_X) != 0) {
      kfree((void*)pa);
      return 0;
    }
    return pa;
  }
  if((*pte & PTE_U) == 0)
    return 0;
  pa = PTE2PA(*pte);
  return pa;
}

(TODO: more detailed)

Handle out-of-memory correctly: if kalloc() fails in the page fault handler, kill the current process.

// Returns 0 on success, -1 if not
int
lazy_alloc(uint64 va)
{
  char *mem;
  uint64 a;

  a = PGROUNDDOWN(va);
  mem = kalloc();
  if (mem == 0) {
    return -1;
  }
  memset(mem, 0, PGSIZE);
  if(mappages(myproc()->pagetable, a, PGSIZE, (uint64)mem, PTE_W|PTE_R|PTE_X|PTE_U) != 0){
    kfree(mem);
    return -1;
  }
  return 0;
}

Handle faults on the invalid page below the user stack.

// Returns 0 on success, -1 if not
int
lazy_alloc(uint64 va)
{
  char *mem;
  uint64 a;

  a = PGROUNDDOWN(va);
  mem = kalloc();
  if (mem == 0) {
    return -1;
  }
  memset(mem, 0, PGSIZE);
  if(mappages(myproc()->pagetable, a, PGSIZE, (uint64)mem, PTE_W|PTE_R|PTE_X|PTE_U) != 0){
    kfree(mem);
    return -1;
  }
  return 0;
}

(TODO: more detailed)

Eliminate allocation from sbrk() (easy)#

錯誤訊息解釋#

使用 gdb 解析#

Lazy allocation (moderate)#

Lazytests and Usertests (moderate)#

References#

Eliminate allocation from sbrk() (easy)

錯誤訊息解釋

使用 `gdb` 解析

Lazy allocation (moderate)

Lazytests and Usertests (moderate)

References
